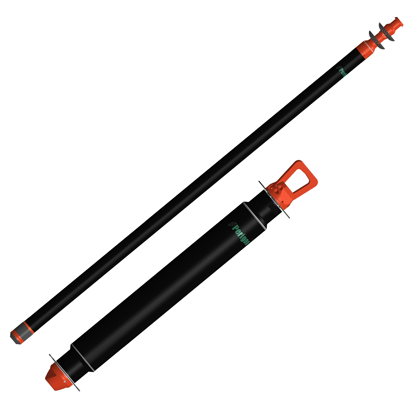

The Cement Support Tool (CST)
The Cement Support Tool (CST)
Designed to be pumped through long work strings, the CST effectively exits and fills the open or cased hole, ensuring robust support for the off-bottom cement plug. This design simplifies the cementing process, making it more efficient and reliable.
The CST is available in five standard sizes, with an additional customized version specifically for coiled tubing. This variety ensures that you can select the perfect size for your specific cementing needs, maximizing the effectiveness and reliability of your operations.
Choosing the right CST size is straightforward and depends on two key factors:
-
The inner diameter of your work string
-
The inner diameter of the open or cased hole where the cement plug will be set
Cement Support Tool
BROWN MODEL
Work String Range 2 - 4½" ID
Hole / Casing Size 6 – 16" ID
Cement Support Tool
BLUE MODEL
Work String Range 2 - 5” ID
Hole / Casing Size 7 - 16” ID
Cement Support Tool
GREEN MODEL
Work String Range 2 ½ - 5.16" ID
Hole / Casing Range 7 ½" – 20" ID
Cement Support Tool
ORANGE MODEL
Work String Range 2 ½"-6"
Hole / Casing Range 7 ½" – 20" ID
Cement Support Tool
BLACK MODEL
Work String Range 4" - 6.5" ID
Hole / Casing Range 8" - 42" ID
Cement Support Tool
YELLOW MODEL
Coil Tubing CST 2 ⅜"
Hole / Casing Range 4" - 16" ID
By choosing the CST, you invest in a proven solution that enhances the reliability, efficiency, and overall success of your cementing operations.
High Success Rate:
CST dramatically reduces the failure rate for setting cement plugs, boasting a success rate of over 95%.
Efficient and Reliable:
Designed for easy pumping through long work strings, CST ensures reliable support for off-bottom cement plugs, simplifying the cementing process.
Flexibility:
Available in five standard sizes and a customized version for coiled tubing, CST covers a wide range of needs in various operational scenarios.
No Extra Tools or Training Needed:
CST is easy to deploy without the need for additional tools or extensive training, making it cost-effective and user-friendly.
Versatility:
CST functions as a floating piston in the fluid, with no limitations on angle or depth, and has been used in hole depths greater than 7,000 meters and angles up to 90 degrees.
Quality Materials:
Made of aluminum, fiberglass, and strong fabrics, CST prevents heavy cement slurry from swapping places with well fluid below the cement plug.
Globally Proven:
With thousands of units deployed globally since 2002, CST is a trusted solution recognized by industry professionals worldwide.
Effective Plugging:
CST expands to create a robust support base, providing effective and reliable plugging in both open and cased holes.
Download product sheets for all cement support tool models
he selection of six models of the Cement Support Tool (CST), including a customized version for coiled tubing allows you to choose the perfect size for your specific well conditions, maximizing the tool's effectiveness and reliability.
Curious about the questions we hear most often?
Here are some of the common questions that frequently come up. Want more detailed information or have different questions altogether? Reach out to us - we're here to help you.
